Transform

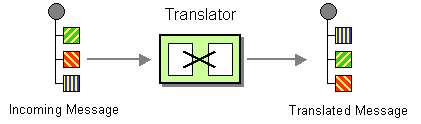

Camel supports the Message Translator from the EIP patterns .

How can systems using different data formats communicate with each other using messaging?

Use a special filter, a Message Translator, between other filters or applications to translate one data format into another.

The Message Translator can be done in different ways in Camel:

Using Transform or Set Body in the DSL
Calling a Processor or bean to perform the transformation
Using template-based Components , with the template being the source for how the message is translated
Messages can also be transformed using Data Format to marshal and unmarshal messages in different encodings.
Using data type based transformation using Transform DataType

This page is documenting the first approach by using Transform EIP.

Options

The Transform eip supports 0 options, which are listed below.

Name	Description	Default	Type
note	Sets the note of this node.		String
description	Sets the description of this node.		String
disabled	Disables this EIP from the route.	false	Boolean
expression	Required Expression to return the transformed message body (the new message body to use).		ExpressionDefinition

Name

Description

Default

Type

note

Sets the note of this node.

String

description

Sets the description of this node.

String

disabled

Disables this EIP from the route.

false

Boolean

expression

Required Expression to return the transformed message body (the new message body to use).

ExpressionDefinition

Exchange properties

The Transform eip has no exchange properties.

Using Transform EIP

You can use a Transform which uses an Expression to do the transformation:

In the example below, we prepend Hello to the message body using the Simple language:

Java
XML
YAML

from("direct:cheese")
    .transform(simple("Hello ${body}"))
    .to("log:hello");

<route>
    <from uri="direct:cheese"/>
    <transform>
        <simple>Hello ${body}</simple>
    </transform>
    <to uri="log:hello"/>
</route>

- from:
    uri: direct:cheese
    steps:
      - transform:
          expression:
            simple: Hello ${body}
      - to:
          uri: log:hello

What is the difference between Transform and Set Body?

The Transform EIP always sets the result on the OUT message body.

Set Body sets the result accordingly to the Exchange Pattern on the Exchange .
